Bearing body, top load form, compact structure, strong and durable
Large bearing capacity, the max overhead load 50kg
Brushless DC motor drive, low power consumption, long life, fast response, no lag sense, flexible operation
The shell is made of high strength aluminum alloy material die-casting, waterproof, high temperature resistance, aging resistance and corrosion resistance
Tilt with mechanical brakes to prevent power failure "head down"
Solid and reliable all-metal shell in line with IP66 standards for all-weather outdoor use
The use of stepper motor position closed-loop control, to avoid the traditional stepper motor position after the opening of the loop out of the problem of position loss
Customizable conversion board for quick installation of various loads
Multi-preset bit, high preset bit precision, group inspection function
Product Characteristics
Pan Tilt Hardware Part
Max dimensions | H 345mm* L 335mm* W 198mm |
Load bearing form top | Top load |
Transmission form | Pan and tilt harmonic reducer |
Self-locking load | 20Kg |
Installation method | Upright installation, base fixed at four points |
Supply voltage | 24V /48V±20% (Customizable) |
Camera communication port | Reserved 100Mbps( 1000Mbps is optional) |
Pan slip ring life | 3 million revolutions |
Power protection | TVS 8000V lightning-proof, surge proof, in line with GB/T17626.5 Level 4 |
Rotation range | Pan 360° continuous rotation, tilt -55°~+60° |
Speed range | Pan 0.01° ~60° /s, tilt 0.01° ~20° /s (Customizable) |
Power consumption | ≤5W (Standby), ≤60W(Operation) |
Angular resolution | 0.01° |
Angle error | ≤ 0.05° |
Shield power supply voltage | 12V/24V/12+24 Options |
Body material | Aluminum alloy |
Operating temperature and humidity | -40℃~65℃, < 90% RH |
Protection level | IP66 |
Self weight | 18kg |
Pan Tilt Software Part
Control communication interface | 485/422 |
Communication protocol | PELCO-D |
Baud rate | 9600bps |
Speed control mode | Closed-loop speed control mode |
Position control mode | Closed-loop position control mode, power off position is not lost |
Self-check | No self-check is required. It will start working within 5 seconds after power-on |
Basic motion function | Manual control 64 level speed adjustable, proportional variable speed (camera support required) |
Number of preset bits | 199 (Standard) +255 (Extendable) |
Positioning function | Absolute angle positioning (adjustable positioning speed) 3D positioning (It needs to be done with the camera) |
Pan Scanning mode | Preset bit point by point scanning (adjustable preset bit dwell time, preset bit scan speed) Pan two-point scanning(adjustable scanning speed and scanning dwell time) |
Watch position | Watch position on or off (can be adjusted back to position time) |
Special functions | Pan-tilt and camera coordinate query or real-time return. With position holding function, abnormal external force caused by the offset can be quickly restored. Vertical jitter suppression is optional |
Load part

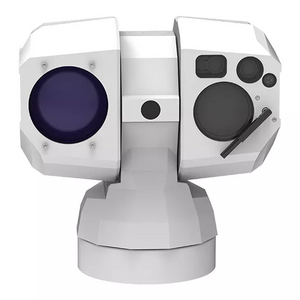

Load type | Top load single cabin housing (Customizable), top load double cabin housing (Customizable). It can be used with search lights, laser light, radar and multispectral detector, etc |
Housing auxiliary functions | Manual control wiper, light sensor auxiliary lighting, housing heating and defogging |
Expansion and selection
PTZ expansion | Optional edge computing module, gyroscope module, GPS module and 4G communication module |
